Supervolt 12V 3000W inverter with mains priority circuit & residual current circuit breaker
Supervolt 12V 3000W inverter with mains priority circuit & residual current circuit breaker
- For 12V systems
- Powerful 3000W continuous load, 6000W peak – sufficient for coffee machine, hairdryer, e-bike
- Pure sine wave inverter – also suitable for sensitive devices
- Mains priority switching – Switches automatically when mains power is supplied
- Integrated RCD protection with self-test
- Remote control + 3M cable included with on/off switch – Prevents standby discharge
- Over 85% efficiency
- Two quiet fans with multiple control (temperature and load)
- compact 42 x 22 x 12 cm at 6.25 kg
- 70CM 35mm² power cable with eyelets supplied
- Instructions and data sheet can be downloaded here(LINK)
- Network type: TN-C
- Please pay attention to the cable thickness(cable thickness calculator here) andprotect with a300A MEGA fuse
Available inverters:
- Free shipping within Germany
504,12 € incl. VAT 0% MwSt. - § 12 Abs. 3 UStG
(504,12 € exkl. MwSt.)
🚚 Lade Versandinfo...
In stock – ready to ship
Passende Produkte dazu:
-
Supervolt 12V 2000W inverter with mains priority circuit & residual current circuit breaker
336,05 € incl. VAT 0% MwSt. - § 12 Abs. 3 UStG -
Supervolt POLAR LiFePO4 150Ah 12.8V Lithium battery with Bluetooth & heater
1.032,77 € incl. VAT 0% MwSt. - § 12 Abs. 3 UStG -
Supervolt POLAR LiFePO4 100Ah (105Ah) 12.8V Lithium Battery with Bluetooth & Heater
713,45 € incl. VAT 0% MwSt. - § 12 Abs. 3 UStG -
Sale!
Supervolt LiFePO4 150Ah 12.8V lithium battery with Bluetooth
Original price was: 948,74 €.853,87 €Current price is: 853,87 €. incl. VAT 0% MwSt. - § 12 Abs. 3 UStG -
Sale! Out of stock
Supervolt LiFePO4 100Ah (105Ah) 12.8V lithium battery with Bluetooth
Original price was: 629,41 €.566,47 €Current price is: 566,47 €. incl. VAT 0% MwSt. - § 12 Abs. 3 UStG
Full power for coffee machine, hairdryer, hob or e-bike
- Fits all Supervolt battery types
- Sufficient power for almost all common consumers in a boat or motorhome
- Extra quiet fan
- Mains priority circuit
- Practical remote control with on/off switch and display
What is mains priority switching?
Priority switching in an inverter, also known as grid priority switching (NVS), is a function that ensures that the inverter automatically switches to the power supply from the grid as soon as it is available. This means that the inverter only supplies power from the batteries when no grid power is available. As soon as grid power is available, it is used preferentially to supply your loads with power and at the same time conserve the batteries.
| Specifications | Specifications |
|---|---|
| Rated power | 3000W / 6000W peak |
| AC voltage | AC output regulation: 10% |
| Frequency | 50Hz±1% / 60Hz±1%, 50/60Hz (optional), manual switching |
| Waveform | Pure sine wave (THD<3%) at nominal output voltage |
| Protection | AC short circuit, overload, overtemperature |
| Bat. voltage range | 10.5V-16.0V |
| Efficiency | ≥85%； ≥ 90% at 50% load |
| Protection | Low battery alarm, low battery cut-off, reverse battery polarity due to fuse, residual current protection (for residual current >30 mA) |
| Bypass | ATS switching time < 25ms |
| Dimensions(L*W*H)cm | 42x22x12cm |
| Weight | 6,25Kg |
| Standby current | 1,2A |
| Certificates | CE (EMC & electrical safety), E-mark (vehicle approval), RoHS, SAA |

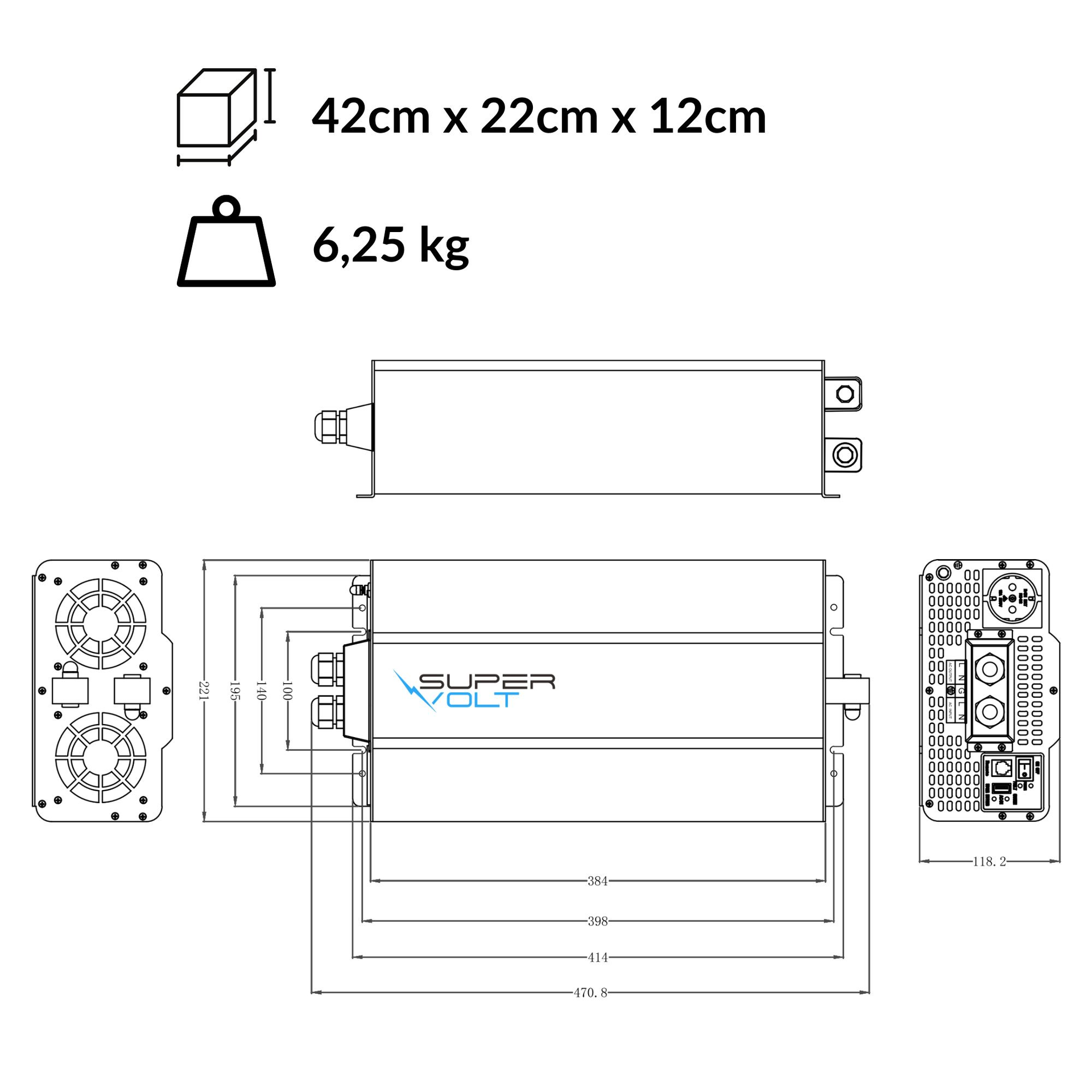

Dimensions
