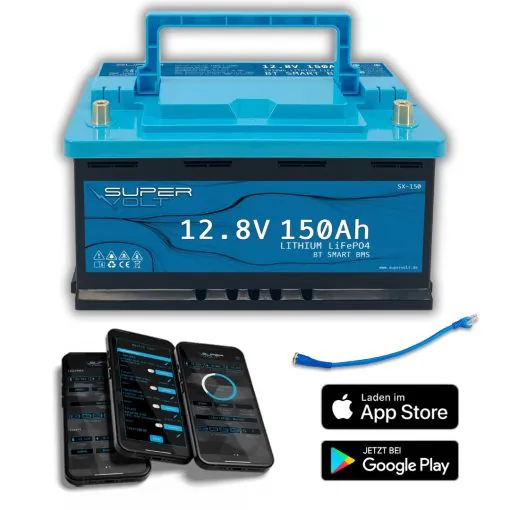

Supervolt LiFePO4 150Ah 12.8V lithium battery with Bluetooth

LiFePO4 lithium battery with BMS and Bluetooth 5.0, high-quality Prisma cells with a service life of over 3000 cycles at 90% depth of discharge. With standardized H8 DIN dimensions for installation under the seat. Perfect under-seat battery for Fiat Ducato, Citroen Jumper or Peugeot Boxer. Ideally suited for motorhomes, panel vans, caravans, boats, gardens or as energy storage for solar systems.

  • NEW: Integrated Victron CAN interface for Victron inverters and Victron GX, as well as CI BUS standard
  • NEW: Screw housing for easy maintenance
  • NEW: On/off switch to prevent the battery from discharging
  • NEW: 3x network slots for the interfaces, interconnection of the batteries and easy import of BMS software updates
  • NEW: IP65 water-protected

  • H8 DIN standard dimensions 356 x 177 x 190mm, 15.6Kg
  • DIN connecting pole with M8 internal thread
  • Perfect under-seat battery for Fiat Ducato, Citroen Jumper or Peugeot Boxer
  • 200A constant discharge – 300A short term
  • Now with passive & active cell balancing. 5 amp “Active Balancing” module for balanced cells and maximum capacity with a longer service life
  • German app developed by Supervolt, which is constantly being expanded
  • 5 year guarantee

Note for all VW Grand California users regarding watertightness: Please note the following installation report: Link

100Ah individually or in a set of two
150Ah individually or in a set of two

Also available as Polar version with heating:

Original price was: 948,74 €.Current price is: 853,87 €. incl. VAT 0% MwSt. - § 12 Abs. 3 UStG

(853,87  exkl. MwSt.)

In stock – delivery time 2-3 working days

In stock – ready to ship

payment methods

Other variants:

Predecessor series:

Supervolt LiFePO4 150Ah 12.8V lithium battery with Bluetooth

LiFePO4 lithium battery with BMS and Bluetooth 5.0, high-quality Prisma cells with a service life of over 3000 cycles at 90% depth of discharge. With standardized H8 DIN dimensions for installation under the seat. Perfect under-seat battery for Fiat Ducato, Citroen Jumper or Peugeot Boxer. Ideally suited for motorhomes, panel vans, caravans, boats, gardens or as energy storage for solar systems.

  • NEW: Integrated Victron CAN interface for Victron inverters and Victron GX, as well as CI BUS standard
  • NEW: Screw housing for easy maintenance
  • NEW: On/off switch to prevent the battery from discharging
  • NEW: 3x network slots for the interfaces, interconnection of the batteries and easy import of BMS software updates
  • NEW: IP65 water-protected

  • H8 DIN standard dimensions 356 x 177 x 190mm, 15.6Kg
  • DIN connecting pole with M8 internal thread
  • Perfect under-seat battery for Fiat Ducato, Citroen Jumper or Peugeot Boxer
  • 200A constant discharge – 300A short term
  • Now with passive & active cell balancing. 5 amp “Active Balancing” module for balanced cells and maximum capacity with a longer service life
  • German app developed by Supervolt, which is constantly being expanded
  • 5 year guarantee

Note for all VW Grand California users regarding watertightness: Please note the following installation report: Link

100Ah individually or in a set of two
150Ah individually or in a set of two

Also available as Polar version with heating:

In stock – delivery time 2-3 working days

Original price was: 948,74 €.Current price is: 853,87 €. incl. VAT 0% MwSt. - § 12 Abs. 3 UStG

(853,87  exkl. MwSt.)

or

In stock – ready to ship

payment methods

Receive notification of availability:

Passende Produkte dazu:

Novelty! The further development of the LiFePO4 battery

Future-proof!

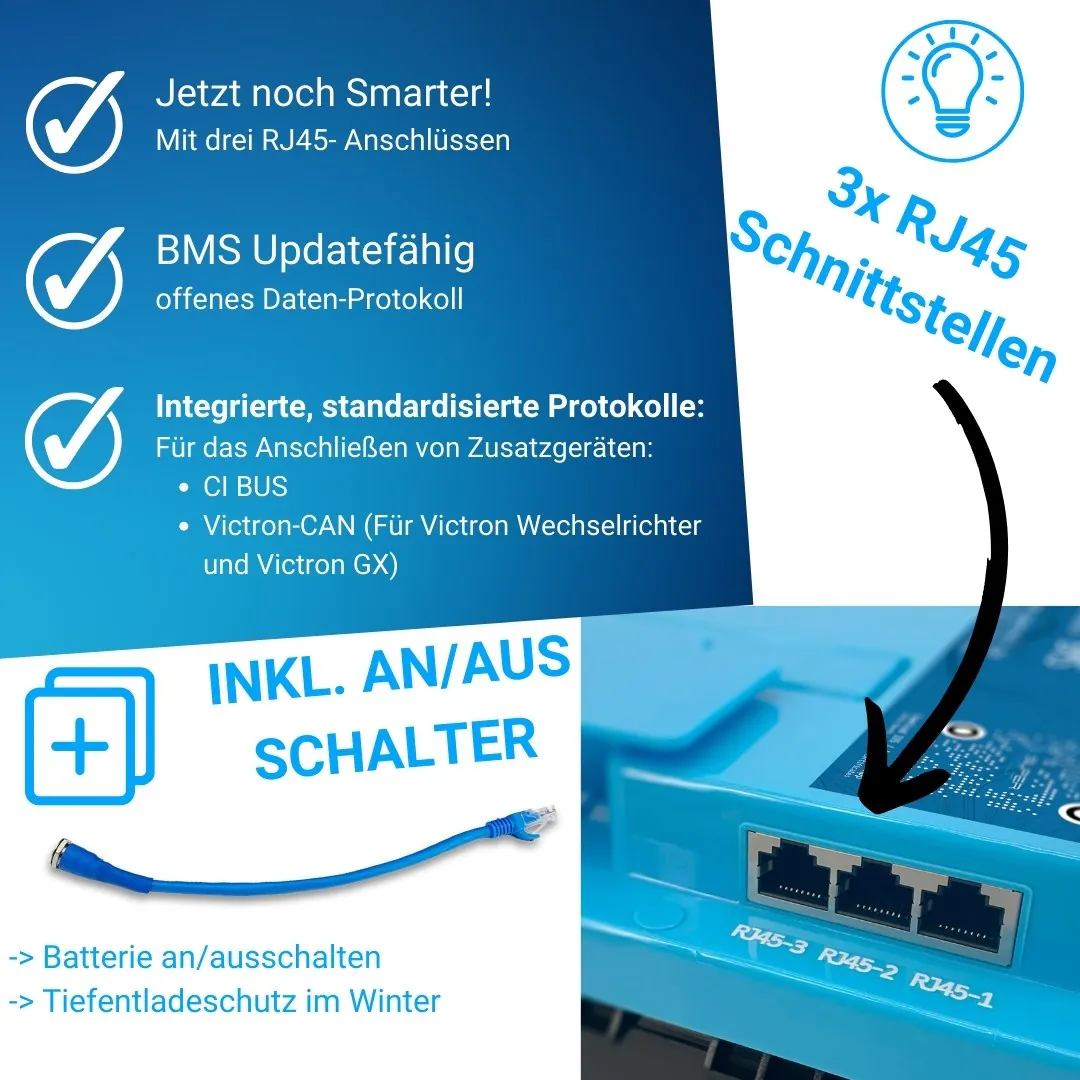

3x RJ45 ports, integrated Victron and CI bus interface, update-capable BMS

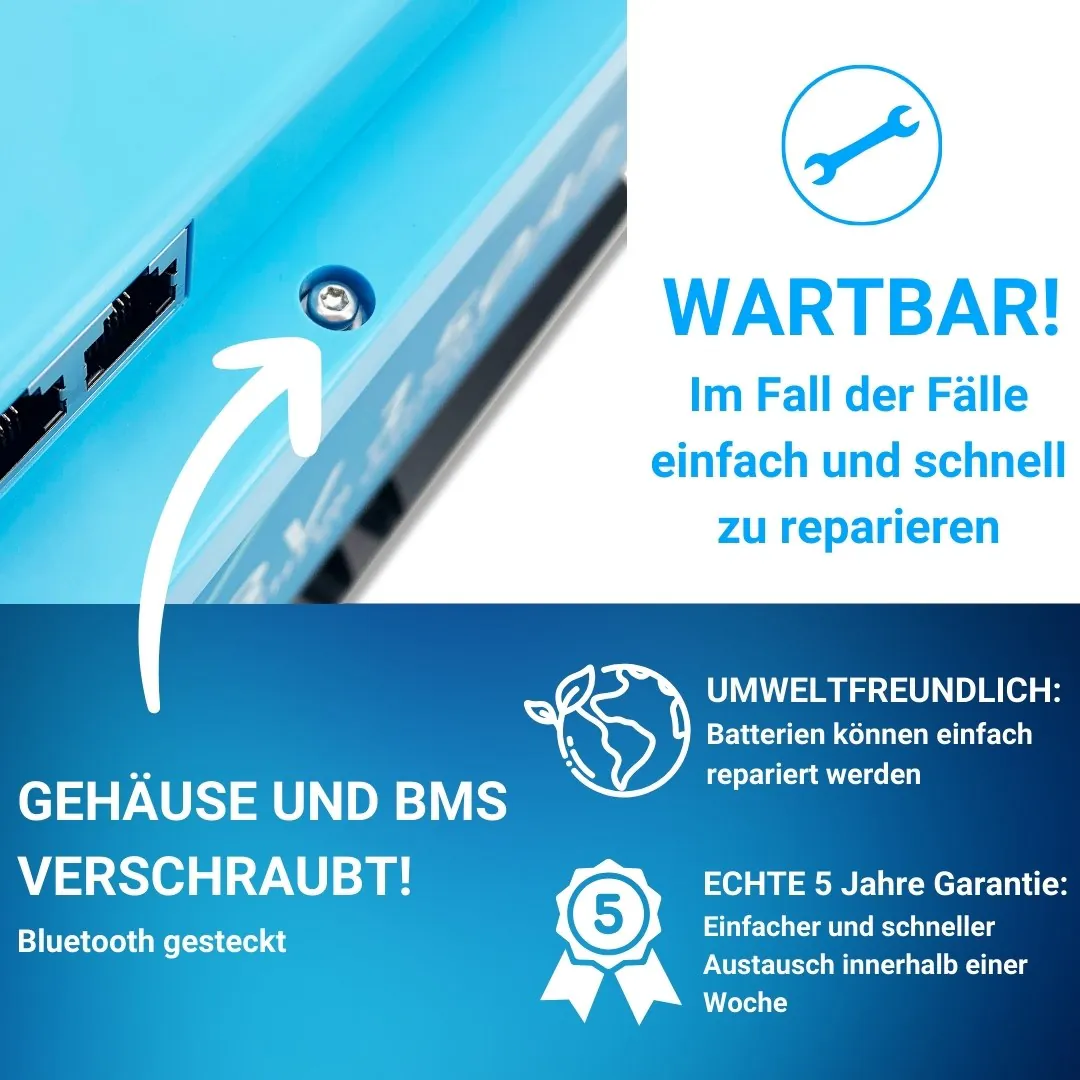

Easy maintenance

New with screw housing in DIN format -> Fits under every seat

screw fixing transparent small

No deep discharging in winter!

Pluggable on/off switch on the RJ45 port for easy deactivation of the battery

switch

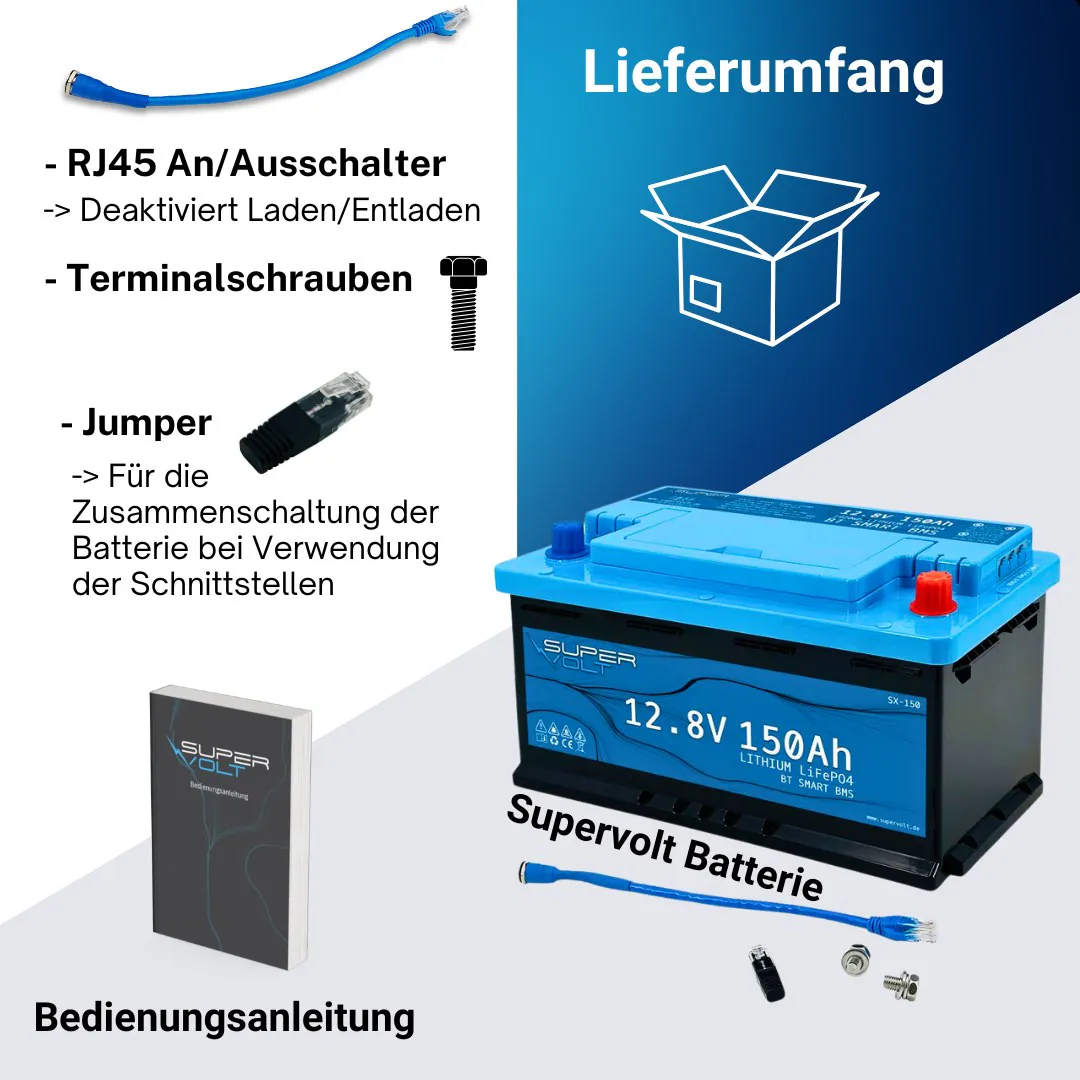

Everything what you need.

Quick and easy to replace

Plug and Play – Almost always directly replaceable with the old battery without additional devices.

Half as heavy, twice as strong!

50% less weight than lead batteries. Only 15.6 kg.

Ultra strong discharge current constant 200A

Sufficient for all common camping equipment. At the same time! The battery can be discharged constantly with 2.5KW.

Maximum usable capacity

100% usable capacity! Lead batteries, on the other hand, can only be discharged to 50%.

Maximum service life

A-grade prismatic cells!
The battery can be almost completely discharged over 3000 times.

Novelty! The further development of the LiFePO4 battery

Future-proof!

3x RJ45 ports, integrated Victron and CI bus interface, update-capable BMS

Easy maintenance

New with screw housing in DIN format -> Fits under every seat

screw fixing transparent small

No deep discharging in winter!

Pluggable on/off switch on the RJ45 port for easy deactivation of the battery

switch

Everything what you need.

Easy and quick to replace

Plug and Play – Almost always directly replaceable with the old battery.

Half as heavy, twice as strong!

50% less weight than lead batteries. Only 15.6 kg.

Ultra strong discharge current constant 200A

Sufficient for all common camping equipment. At the same time! The battery can be discharged constantly with 2.5KW.

Maximum usable capacity

100% usable capacity! Lead batteries, on the other hand, can only be discharged to 50%.

Maximum service life

A-grade prismatic cells!
The battery can be almost completely discharged over 3000 times.

Smart! With Bluetooth 5.0 and BMS

NEW: Now with new functions and multi-battery support! Find out more here.

Clear Bluetooth app

Self-developed Bluetooth app for IOS and Android, which is constantly being further developed in cooperation with our customers.

Can be connected in parallel and in series

The Supervolt LiFePO4 battery can be connected in series up to 48V. (4 batteries)

Battery Management System (BMS)

Integrated, intelligent system that actively balances and protects the cells.

Clear Bluetooth app

Self-developed Bluetooth app for IOS and Android, which is constantly being further developed in cooperation with our customers.

With multi-battery support! Find out more here:

Can be connected in parallel and in series

The Supervolt LiFePO4 battery can be connected in series up to 48V. (4 batteries)

Battery Management System (BMS)

Integrated, intelligent system that actively balances and protects the cells.

Original price was: 948,74 €.Current price is: 853,87 €. incl. VAT 0% MwSt. - § 12 Abs. 3 UStG

(853,87  exkl. MwSt.)

In stock – ready to ship

Safe on the road! Fully certified, also ECE R10!

With 5-year manufacturer’s warranty, ECE R10, E24 test mark, CE-EMV, UN38.3, IATA and IMO certified batteries.

Maintenance-free

With only 3% self-discharge per month when not in use. No problem during winter storage.

5-year manufacturer's warranty

The service life of LiFePo4 batteries is considerably longer than 5 years.

Absolutely safe!

LiFePO4 is the safest lithium technology and is considered intrinsically safe.

MAXIMUM SERVICE LIFE THANKS TO ULTRA-MODERN PRISM CELLS

Illustrative example of the difference between lithium prismatic cells and cylindrical cells

Original price was: 948,74 €.Current price is: 853,87 €. incl. VAT 0% MwSt. - § 12 Abs. 3 UStG

(853,87  exkl. MwSt.)

In stock – ready to ship

Certificates

Technical data - Specifications

General specifications
  • Nominal voltage
    12.8 V
  • Capacity
    150 Ah
  • Energy
    1920 watt hours
  • Self-discharge
    <3% per month
  • Max. Batteries in series connection
    4
Discharge specifications
  • Maximum constant discharge
    200 A (2KW)
  • Maximum peak discharge (5 seconds)
    300 A (4KW)
Charging specifications
  • Recommended charging current 50 A
  • Maximum charging current 200 A
  • Recommended charging voltage 14.2 V – 14.6 V
  • Balancer voltage 14.4 V
  • Balancer current active
    1-5A
  • Balancer current passive
    50-100mA
Temperature specifications
  • Discharge temperature range
    -20 to 65 ºC
  • Charging temperature range
    0 to 65 ºC
  • Storage temperature range
    -20 to 50 ºC

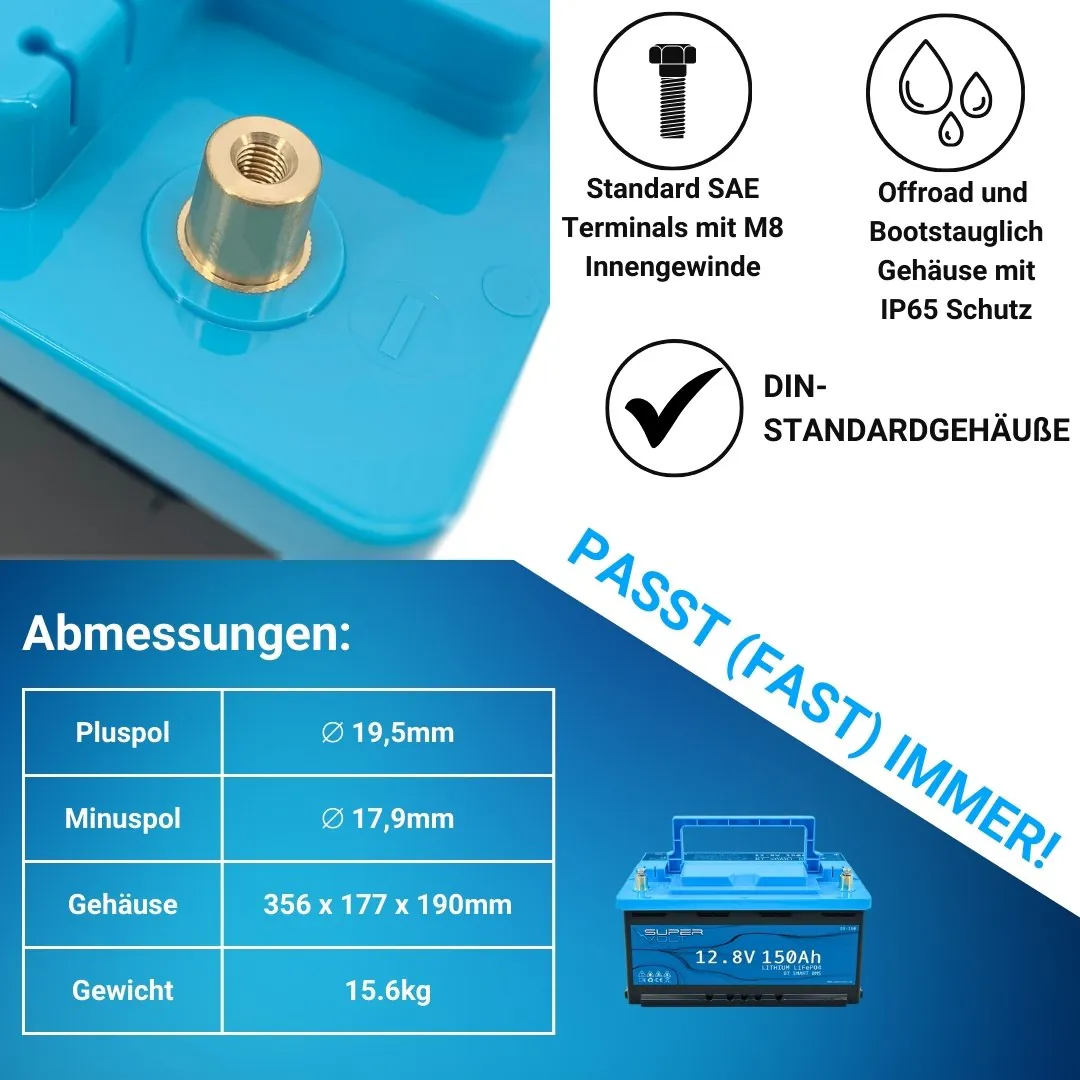

Dimensions

  • Dimensions (L x W x H)
    H8 DIN 356 x 177 x 190mm
  • Weight
    15.6 kg
  • Connection
    Round pole with M8 internal thread (SAE)
  • Housing material
    ABS
  • IP protection class
    IP65

Customer Reviews

Based on 20 reviews
90%
(18)
0%
(0)
5%
(1)
0%
(0)
5%
(1)
M
Mirco
Batterie, drei Jahre alt und kein Update möglich

Zwei Batterien 100 A in Parallelschaltung.
Eine Batterie ist circa dreieinhalb Jahre alt und nach mehreren technischen Anfragen wegen falscher Anzeige In der App, ein Update nicht möglich. beide Batterien zeigen unterschiedliche Werte an bei gleichem Verbrauch.
Die Batterie zeigt die Werte nicht korrekt an, wenn zur Hälfte leer laut Anzeige, dann ist sie anschließend innerhalb von 1-2 Stunden über wieder auf 100% geladen wobei Die zweite 5-6 Stunden braucht.

J
Jürgen Willems
Immer wieder

Ich habe jetzt meine zweite Batterie gekauft nachdem ich sehr zufrieden war.
Am Freitag Nachmittag hatte ich eine technische Frage und rief nach Feierabend an.
Heute wurde ich einfach zurückgerufen, obwohl die nicht wussten was mein Anliegen war.
Das findet man heute selten!
Auch die Erreichbarkeit ist bei Fragen überdurchschnittlich!
100% Weiterempfehlung.

P
P.
Kraftpaket 150A

Die verbauten 2x 240A AGM Batterien auf unserer Segelyacht haben uns trotz fortschritlicher Ladetechnik nie die gewünschte Autarkie gebracht. Da wir zwischenzeitlich bis zu 20 Tage vor Anker liegen und unserer Energie ausschlieschlich mit Solar, Windgenerator und zur Not durch die Lichtmaschine produziert wird, musste ein leistungsstarker Stromspeicher gesucht werden. Diesen haben wir bei Supervolt in der 150A Ausführung gefunden und waren von Anfang an begeistert. Obwohl die nutzbare Kapazität um einiges unter den AGM’s Batterien liegt, stellt dies in der Praxis durch die hohe Strombelastbarkeit und viel schnellere Ladezeiten überhaubt kein Problem dar. Ganz nebenbei haben wir an Gewicht 115kg eingespart. Besonders erwähnenswert ist zudem das professionelle Team hinter Supervolt, welche jede Beratungs und Support Anfrage innert kürzester Zeit beantwortet. Beste Grüsse P.G.

A
Alexey B.
Mehr Power – weniger Gewicht

Ich habe in meinem Kastenwagen die alten AGM Batterien ausgetauscht.

2x 100 Ah AGM Batterien wurden durch 1x 150 Ah Supervolt getauscht.

Jetzt habe ich 50 Prozent mehr effektive Energie und gleichzeitig fast 40 kg gespart!

Ich bin sehr zufrieden nach 4 Monaten im Dauereinsatz.

M
M.S.
Alles super

Sind Absolut begeistert, haben nach Batterien für unseren Garten gesucht und wurden fündig. Die Beratung der Support die Qualität und die Leistung ist alles Oberklasse. Die Lieferung war schnell und die Montage sehr einfach. Bei Fragen steht der Support einen immer zu Seite und die Verarbeitung der Batterien ist sehr hochwertig. Auch der Versand hat super geklappt und die Verpackung ist sehr gut ausgelegt, so dass die Batterie sicher zugestellt werden kann.
Würde Supervolt jedem empfehlen. Preis Leistung und Support ist absolut TOPP

H
Hans-Joachim Plath
Super.. SuperVolt

Bin mehr als zufrieden mit der SuperVolt 150 Ah, erste Tests liefen sehr gut ab. Klappt alles bestens, besser geht es nicht. Bestellung war einfach auszuführen und die Lieferung erfolgte auch sehr schnell in guter Verpackung.
Alles bestens, vielen Dank
😀

M
M.Koenig
Top Lithium Batterie 150Ah

Nach der sehr guten Beratung durch Herrn Bauer, habe ich mich für Supervolt entschieden.
Habe diese Lithium Batterie in meinen neuen Etrusco DB540 seit 8 Monaten eingebaut und ich habe ihn wöchentlich im Einsatz (Winterbetrieb) sehr gute Verarbeitung.
Dieser Akku ist sehr Spannungsfest und wird bei mir von einem Ladebooster mit 45A geladen. Die App ist ganz gut, Verbindung aus 3-4m aus dem Haus funktionert noch. BMS Anzeige ist absolut genau und das Balancing auch sehr gut.
Nochmals würde ich mir wohl die Polar Version kaufen, da diese bei tieferen Temperaturen geladen werden kann. Klare Empfehlung!

C
Customer
Top Produkt

Vor etwa 10 Monaten haben wir die 150 AH Batterie für unser Camperausbau-Projekt gekauft. Direkt verbaut und an die 450 Watt Solar-Anlage geschlossen. Läuft seitdem einwandfrei. Klare Empfehlung!

F
Frank Kluck
Hymer S600 Free

Samstags bestellt Mittwochs geliefert!
Die Lifepo4 150 AH gegen die Orginale 95 AH Varta ausgetauscht ging in 10 Minuten!
Dann den Elektroblock 30 von Schaudt von AGM auf Lizium geschaltet,somit nur noch den Ladebooster Schaudt von AGM auf Lizium,Ladestrom 55 AH ,Ladekurve C3 für Euro 6 Fahrzeuge fertig !
Bei Android Handys ist bei mir zumindest der Emfang der Batterie schwach,doch vom Heckbett bis zum Fahrersitz funktioniert es!
Mir reicht das.
Die Batterie macht was sie soll!
Bin bis jetz sehr zufrieden.

H
Harald Hoyler
100% zufrieden

Die Lifepo4 ist seit 09/22 im Einsatz, der Versand erfolgte innerhalb 1 Woche.
Der Austausch gestaltete sich recht einfach, Gelbatterie raus und die Lifepo4 angeschlossen, das war`s.
Das Ladegerät und der Solaregler konnten eins zu eins übernommen werden.
In der winterlichen Sonne Spaniens bringt die 200 Watt Solaranlage auf dem Dach im Schnitt 4-5 Ampere die Stunde sodass die Batterie gegen nachmittag immer wieder voll geladen war und wir konnten dadurch komplett ohne Stromanschluß stehen. Bei bedeckten Himmel hält die Lifepo4 bei uns ca. 5 Tage. Bei der Weiterfahrt
über die Ducato Lichtmaschine Bj.2018 wurde die Batterie mit bis zu 20 Ampere geladen. Bisher sind wir bei 15 Ladezyklen und könnten die Batterie uneingeschränkt weiter empfehlen.
