Please note! Heavily discounted predecessor series. Identical to the new Pro series.
For special conditions and quantity discounts, please contact: [email protected]

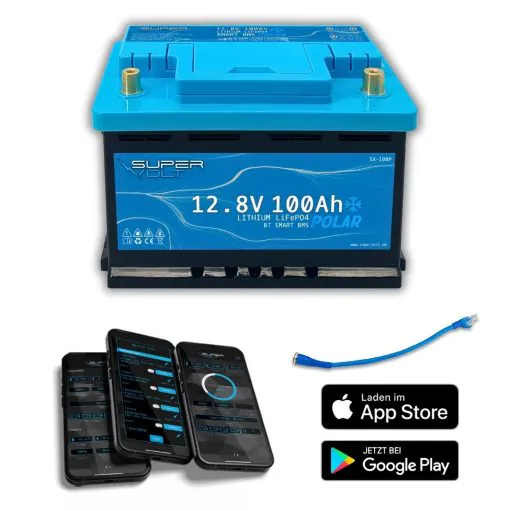

Supervolt SX100-P · Vorgängerserie
Highest quality EVE A Grade prismatic cells with 105Ah nominal capacity and up to 113Ah callable capacity. Each battery and installed cell can be tested via our quality management dashboard. Example: click here
LiFePO4 lithium battery with integrated heating, BMS and Bluetooth 5.0, high-quality EVE Prisma cells with over 3000 cycles life at 90% discharge. With standardized H6 DIN dimensions. Ideally suited for motorhomes, vans, caravans, boats, gardens or as energy storage for solar systems.
- NEW: Integrated Victron CAN interface for Victron inverters and Victron GX, as well as CI BUS standard
- NEW: Screw housing for easy maintenance
- NEW: On/off switch to prevent the battery from discharging
- NEW: 3x network slots for the interfaces, interconnection of the batteries and easy import of BMS software updates
- NEW: IP65 water-protected
–
- POLAR: Charge your lithium battery safely at temperatures as low as -30°C
- H6 DIN standard dimensions 280 x 177.5 x 190mm, 11Kg
- DIN connecting pole with M8 internal thread
- Perfect under-seat battery for Fiat Ducato, Citroen Jumper or Peugeot Boxer. Also suitable for T5, T6 or Ford Nugget
- 160A constant discharge – 250A short-term
- Now with passive & active cell balancing. 5 amp “Active Balancing” module for balanced cells and maximum capacity with a longer service life
- German app developed by Supervolt, which is constantly being expanded
- 5 year guarantee
100Ah - Polar single or in a set of two
150Ah - Polar single or in a set of two
180Ah - Polar individually or as a set
- Free shipping within Germany
- 5 year guarantee
Original price was: 713,45 €.545,38 €Current price is: 545,38 €. incl. VAT 0% MwSt. - § 12 Abs. 3 UStG
(545,38 € exkl. MwSt.)
In stock – delivery time 2-3 working days
In stock – ready to ship
Other variants:
Predecessor series:
Supervolt SX100-P · Vorgängerserie
Highest quality EVE A Grade prismatic cells with 105Ah nominal capacity and up to 113Ah callable capacity. Each battery and installed cell can be tested via our quality management dashboard. Example: click here
LiFePO4 lithium battery with integrated heating, BMS and Bluetooth 5.0, high-quality EVE Prisma cells with over 3000 cycles life at 90% discharge. With standardized H6 DIN dimensions. Ideally suited for motorhomes, vans, caravans, boats, gardens or as energy storage for solar systems.
- NEW: Integrated Victron CAN interface for Victron inverters and Victron GX, as well as CI BUS standard
- NEW: Screw housing for easy maintenance
- NEW: On/off switch to prevent the battery from discharging
- NEW: 3x network slots for the interfaces, interconnection of the batteries and easy import of BMS software updates
- NEW: IP65 water-protected
–
- POLAR: Charge your lithium battery safely at temperatures as low as -30°C
- H6 DIN standard dimensions 280 x 177.5 x 190mm, 11Kg
- DIN connecting pole with M8 internal thread
- Perfect under-seat battery for Fiat Ducato, Citroen Jumper or Peugeot Boxer. Also suitable for T5, T6 or Ford Nugget
- 160A constant discharge – 250A short-term
- Now with passive & active cell balancing. 5 amp “Active Balancing” module for balanced cells and maximum capacity with a longer service life
- German app developed by Supervolt, which is constantly being expanded
- 5 year guarantee
100Ah individually or in a set of two
150Ah individually or in a set of two
NEW! 180Ah-Polar individually or in a set of two
- Free shipping within Germany
- 5 year guarantee
In stock – delivery time 2-3 working days
Original price was: 713,45 €.545,38 €Current price is: 545,38 €. incl. VAT 0% MwSt. - § 12 Abs. 3 UStG
(545,38 € exkl. MwSt.)
or
In stock – ready to ship
Passende Produkte dazu:
-
-
-
-
Supervolt SV-SUN250 Foldable solar bag 250W mono-crystalline
327,73 € incl. VAT 0% MwSt. - § 12 Abs. 3 UStG -
Supervolt Ultra – 12.8V 60Ah High Power LiFePO4 high-performance battery with Bluetooth, heater and integrated balancer
579,83 € incl. VAT 0% MwSt. - § 12 Abs. 3 UStG
Now with integrated heating
Now with integrated heating
A normal lithium iron phosphate battery cannot be charged below 0°C.
As a solution for using batteries in extreme conditions, we now offer Supervolt POLAR batteries with integrated heating.
- Charge battery down to -30°C
- Ideal for winter camping and vehicles with an external battery compartment
- Heating activates automatically at below 0°C
- Efficient and energy-saving heating - heating elements are installed directly between the prismatic cells
Novelty! The further development of the LiFePO4 battery
Future-proof!
3x RJ45 ports, integrated Victron CAN and CI bus interface, update-capable BMS
Easy maintenance
New with screw housing in DIN format -> Fits under every seat
No deep discharging in winter!
Plug-in on/off switch on the RJ45 port for easy deactivation of the battery
Everything what you need.
Easy and quick to replace
Plug and Play – Almost always directly replaceable with the old battery.
Half as heavy, twice as strong!
50% less weight than lead batteries. Only 11 kg.
Ultra strong discharge current constant 160A
Sufficient for all common camping equipment. At the same time! The battery can be discharged constantly with 2KW.
Maximum usable capacity
100% usable capacity! Lead batteries, on the other hand, can only be discharged to 50%.
Maximum service life
A-grade prismatic cells!
The battery can be almost completely discharged over 3000 times.
The battery can be almost completely discharged over 3000 times.
Novelty! The further development of the LiFePO4 battery
Future-proof!
3x RJ45 ports, integrated Victron and CI bus interface, update-capable BMS
Easy maintenance
New with screw housing in DIN format -> Fits under every seat
No deep discharging in winter!
Pluggable on/off switch on the RJ45 port for easy deactivation of the battery
Everything what you need.
Quick and easy to replace
Plug and Play – Almost always directly replaceable with the old battery.
Half as heavy, twice as strong!
50% less weight than lead batteries. Only 11 kg.
Ultra strong discharge current constant 160A
Sufficient for all common camping equipment. At the same time! The battery can be discharged constantly with 2KW.
Maximum usable capacity
100% usable capacity! Lead batteries, on the other hand, can only be discharged to 50%.
Maximum service life
A-grade prismatic cells!
The battery can be almost completely discharged over 3000 times.
The battery can be almost completely discharged over 3000 times.
Smart! With Bluetooth 5.0 and BMS
NEW: Now with new functions and multi-battery support!
Find out more here:
Clear Bluetooth app
Self-developed Bluetooth app for IOS and Android, which is constantly being further developed in cooperation with our customers.
Can be connected in parallel and in series
The Supervolt LiFePO4 battery can be connected in series up to 48V. (4 batteries)
Battery Management System (BMS)
Integrated, intelligent system that actively balances and protects the cells.
- Overload protection
- Deep discharge protection
- Overvoltage protection
- Active balancing of the cells
- Load monitoring and control
- Temperature protection of the cells (charging process switches off at below 0°)
- Automatic intelligent charging control
- Short-circuit protection
- Allows easy replacement with AGM or lead batteries
Clear Bluetooth app
Self-developed Bluetooth app for IOS and Android, which is constantly being further developed in cooperation with our customers.
Can be connected in parallel and in series
The Supervolt LiFePO4 battery can be connected in series up to 48V. (4 batteries)
Battery Management System (BMS)
Integrated, intelligent system that actively balances and protects the cells.
- Overload protection
- Deep discharge protection
- Overvoltage protection
- Active balancing of the cells
- Load monitoring and control
- Temperature protection of the cells (charging process switches off at below 0°)
- Automatic intelligent charging control
- Short-circuit protection
- Allows easy replacement with AGM or lead batteries
Original price was: 713,45 €.545,38 €Current price is: 545,38 €. incl. VAT 0% MwSt. - § 12 Abs. 3 UStG
(545,38 € exkl. MwSt.)
In stock – ready to ship
Safe on the road! Fully certified, also ECE R10!
With 5-year manufacturer’s warranty, ECE R10, E24 test mark and UN38.3, IATA and IMO certified batteries
Maintenance-free
With only 3% self-discharge per month when not in use. No problem during winter storage.
5-year manufacturer's warranty
The service life of LiFePo4 batteries is considerably longer than 5 years.
Absolutely safe!
LiFePO4 is the safest lithium technology and is considered intrinsically safe.
MAXIMUM SERVICE LIFE THANKS TO ULTRA-MODERN PRISM CELLS
- Less weight due to lower number of cells
- Longer service life, as each cell is individually balanced by BMS and therefore no cell is overloaded
- Maintenance-free - with only 3% self-discharge per month
- Higher available power output. Up to 2KW!
Original price was: 713,45 €.545,38 €Current price is: 545,38 €. incl. VAT 0% MwSt. - § 12 Abs. 3 UStG
(545,38 € exkl. MwSt.)
In stock – ready to ship
Certificates
- ECE R10, E24 test mark
- CE EMC, electromagnetic compatibility
- MSDS Material Safety Data Sheet
- UN38.3 Transport certificate for the road
- IATA transport certificate for air freight
- IMO transport certificate for sea freight
Technical data - Specifications
Electrical specifications
- Nominal voltage 12.8 V
- Capacity 100 Ah
- Energy 1280 watt hours
- Self-discharge <3% per month
- Max. Batteries in series connection 4
Discharge specifications
- Maximum constant discharge 160 A (2KW)
- Maximum peak discharge (5 seconds) 250 A (3.2KW)
Charging specifications
- Recommended charging current 50 A
- Maximum charging current 160 A
- Recommended charging voltage 14.2 V – 14.6 V
- Balancer voltage 14.4 V
- Balancer current active 1-5A
- Balancer current passive 50-100mA
Temperature specifications
- Discharge temperature range -20 to 60 ºC
- Temperature range for charging -30 to 60 ºC
- Storage temperature range -20 to 50 ºC
Heating time and power consumption
| Supervolt battery | Duration (from -20C° to +10C°) | Consumption |
| Supervolt Ultra 100Ah | 40 min | 60 W |
| Supervolt Polar 100Ah | approx. 1 h | 85 W |
| Supervolt Polar 150Ah | approx. 1.5 h | 175 W |
| Supervolt Polar 180Ah | ca 1 h | 145 W |
Dimensions
- Dimensions (L x W x H)
DIN H6 280 x 177.5 x 190mm - Weight
11 kg - Connection
Round pole with M8 internal thread (SAE) - Housing material
ABS - IP protection class
IP65
