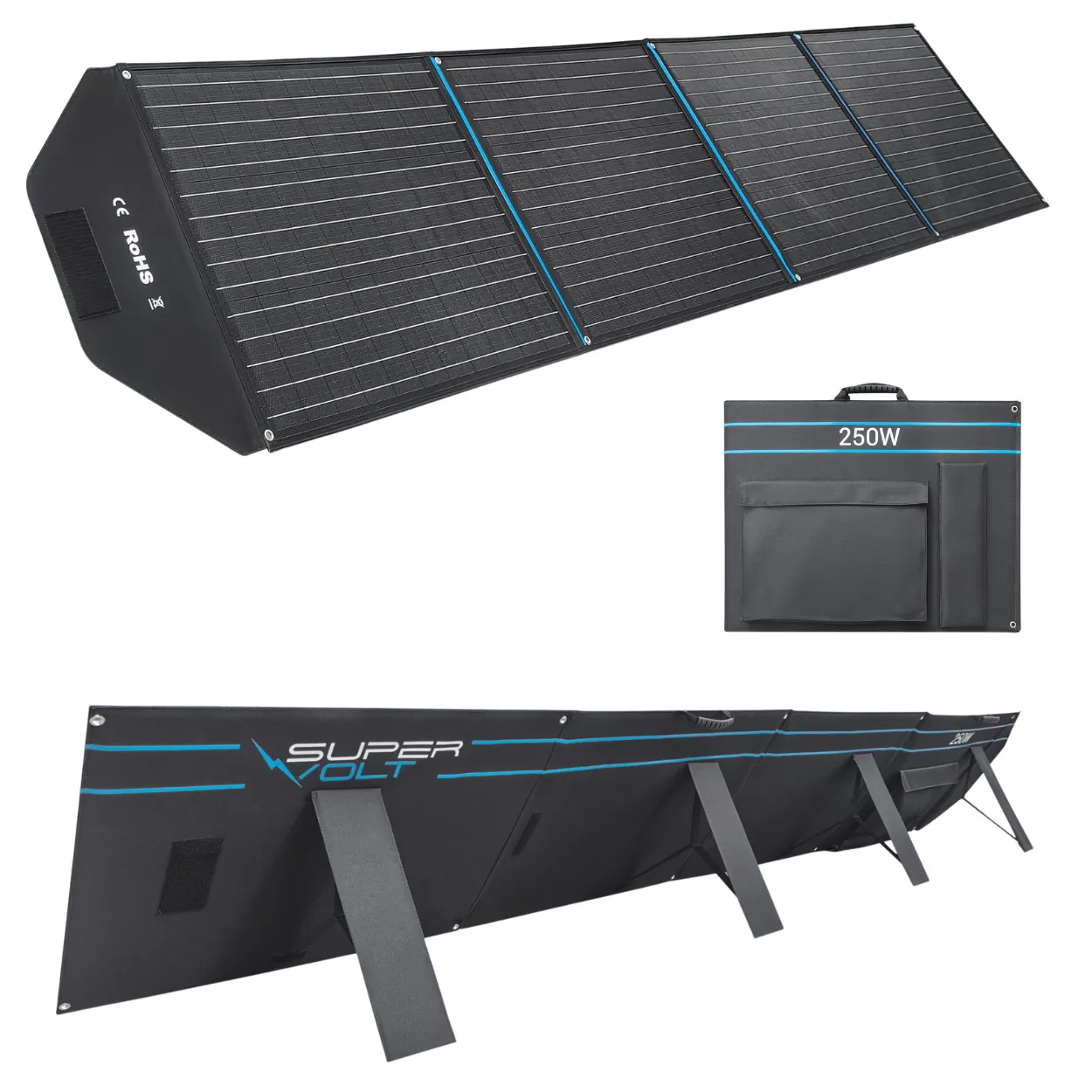

Supervolt SV-SUN250 Foldable solar bag 250W mono-crystalline
- Compact, foldable design for maximum mobility and easy stowage in the vehicle
- Ideal for campers, motorhome owners and adventurers with a need for space-saving and portability
- Easy installation thanks to practical eyelets, suitable for various locations such as motorhomes, gardens or boats
- Highly efficient energy generation with 250W output and 22%±1% efficiency thanks to high-quality mono-crystalline silicon cells
- Weatherproof and durable thanks to ETFE+PCB lamination, ensures long-lasting performance even under demanding conditions
- Safety-oriented with a 5 M 3-in-1 cable for secure connections; solar charge controller required for battery connection to prevent overcharging
- Free shipping within Germany
327,73 € incl. VAT 0% MwSt. - § 12 Abs. 3 UStG
(327,73 € exkl. MwSt.)
🚚 Lade Versandinfo...
In stock – ready to ship
Passende Produkte dazu:
Energy everywhere
Compact, mobile and highly efficient solar bag from Supervolt!
10 fastening eyelets!
Equipped with robust eyelets, it can be easily hung on your vehicle or any other suitable location. Whether on a motorhome, in your garden or on a boat - installation is child's play.
5M 3-in-1 cable
Anderson, MC4 and DC for a secure and simple connection
Highly efficient energy generation
With an impressive output of 250W and an efficiency of 22%±1%, the SV-SUN250 effectively converts sunlight into usable energy. Equipped with high-quality mono-crystalline silicon cells, this module provides a reliable and sustainable energy source.
Compact design for maximum mobility
The SV-SUN250 is characterized by its unique foldable design. In just a few seconds, the panel can be folded to a compact size that can be conveniently stowed in your vehicle. Ideal for campers, motorhome owners and adventurers who value space saving and portability. Folded dimensions: 73 x 58 x 9 cm
| Detailed parameters | Description |
|---|---|
| Peak power (W) | 250W±5% |
| Open circuit voltage (V) | 21.6V±5% |
| Peak voltage (V) | 18V±5% |
| Peak current (A) | 13.88A±5% |
| Short-circuit current (A) | 15.27A±5% |
| Efficiency | 22%±1% |
| Solar cell/number/connection type | Monocrystalline silicon, size 158.75*52.916 mm, 132 pieces, connected in series and parallel |
| Lamination mode | ETFE+PCB lamination |
| Surface encapsulation | ETFE |
| Sealant | EVA |
| Frame (material/color) | None |
| Connection/connection type | With 5 M 3-in-1 cable (DC, MC4, Anderson connection) |
| Maximum system voltage (V) | 700V DC |
| Nominal operating temperature | 48±2℃ |
| Operating temperature range | -20℃ to +75℃ |
| Current temperature coefficient | 0.1%/℃ |
| Stress temperature coefficient | -0.37%/℃ |
| Power temperature coefficient | -0.45%/℃ |
| Air pressure | 1,5 |
| Combined load | 1,3Ω |
| Test temperature | 25℃ |
| Test standard | STC (standard test conditions): AM=1.5, T=25±2℃, 1000W/m² |
- Dimensions:
- Length: 2806 mm
- Width: 520 mm
- Thickness of the solar module: 15 mm
- Weight: 10Kg
- Folded dimensions: 73 x 58 x 9 cm
| Certifications | CE (EMC & low voltage), RoHS |
